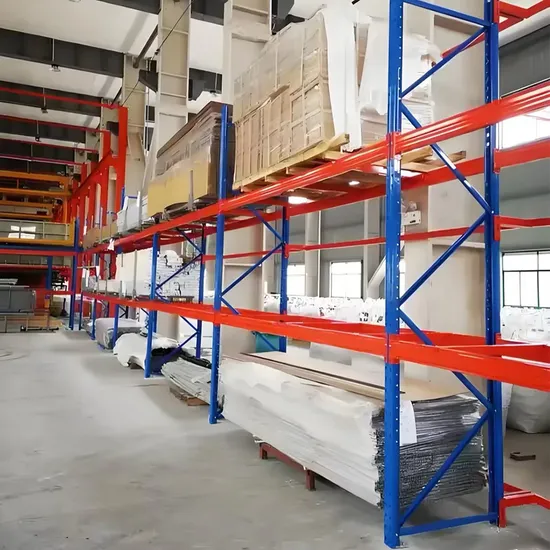

Heavy Duty Metal Steel Storage Racks Warehouse Pallet Racking
- Overview
- Details Images
- Load Test
- Our Safety Assurance
- Customized Services
- Why Choose Us
- Company Profile
- FAQ
- Recommend Products
Basic Info.
| Model NO. | OKE-20250508-04 |
| Usage | Tool Rack, Beverage, Tools, Food, Industrial, Warehouse Rack |
| Material | Steel |
| Structure | Rack |
| Type | Selective Pallet Racking |
| Mobility | Adjustable |
| Height | Max 12000mm or Customized |
| Weight | 5000kg (Each Shelf ) |
| Closed | Open |
| Development | Conventional |
| Serviceability | Common Use |
| Width | 1800/2700/3600mm or Customized |
| Depth | 850-1050 mm or Customized |
| Upright | 80*60; 90*60; 90*70; 90*75; 100*67; 100*70; 100*75 |
| Beam | Height: 80~160mm; Width: 50mm; Thickness: 2.0-2.5m |
| Shelf Height Adjustment | 75/50mm |
| Unit Bay Capacity | 500kg-23000kg / Customized |
| Aisle Selection | Single Row, Back-to-Back Rows, and Multiple Rows |
| Construction Type | Bolted Frame |
| Beam Type | Step Beam/Box Beam |
| Surface Finish | Powder Coated/ Galvanized |
| OEM&ODM | Yes |
| Color | Blue, Orange or Customized: All Ral Color |
| Number of Levels | According to Customer Needs |
| Feature | Durable, Corrosion Protection |
| Transport Package | Package Ends with Cardboard and Bundle with Steel |
| Trademark | OKE Storage |
| Origin | China |
| HS Code | 73089000 |
| Production Capacity | 5000 Ton/Tons Per Month Warehouse Racking |
Packaging & Delivery
Package Size365.00cm * 110.00cm * 1205.00cm Package Gross Weight300.000kgProduct Description
In addition, we have specifically equipped safety accessories to ensure security.Footplates: Footplates are fixed to the ground using expansion screws. Depending on the load-bearing capacity, we provide both Type II Footplates and enclosed Footplates.Guardrail: Mainly U-shaped (240mm long, 500mm high, 2.0mm thick), not in contact with the shelves, anchored to the ground primarily to prevent forklifts from knocking down the shelves.Rear Crossbeam: Rear crossbeams are installed at the back of the shelves to prevent goods from falling off the shelves and provide additional safety protection for operators.Safety Bolt: 7-shaped, inserted into the holes of the uprights to maintain the stability of the beams.Back Mesh: Installed on the sides of the shelves to prevent small items from scattering.Pallet Stops: These devices prevent goods from sliding or rolling on the shelves, ensuring that the goods are securely placed in the proper position.Goods Dividers: Used to separate goods to prevent them from tilting or collapsing when stacked.Mesh Decking: Different-sized items can also be placed on the shelves, eliminating fire hazards associated with wooden boards.Pallet Supports: Increase beam support and prevent items from falling, available in two types: straight and diagonal designs.Diagonal Braces: Support structures between shelf uprights that increase the overall stability of the shelves, reducing lateral deformation and shaking.Cross Braces: These connectors can be installed between the horizontal beams of the shelves to increase overall rigidity.Signage and Warnings: Safety signs, warning signs, and instructions help operators use the shelves correctly and remind them of safety precautions.Row Spacer: Maintains stability between mainframes and sub-frames.Shims: Provide shock absorption, reduce noise, adjust shelf height and horizontal angles, and preventshelf sliding.
| Products Support | |
| Free Consultation | Yes, Any Questions You Can Consult With Free. |
| Support For Custom | Yes |
| Free Design | Yes, CAD/PDF/3D Drawing |
| Free Sample | Available (Delivery Cost By Buyer) |
| 3D Sample | Yes, 1:1 3D Sample, Save Your Time And Cost of Trial and Error |
| Pre-installation | Yes |
| Capacity Test | Yes, If Needed. |
| OEM&ODM | Available |
| Lead Time | 15-20 Days For Regular Pallet Racking, One Container |
| Installation Service | Yes, Submit the Installation Drawing Or Video, and send the Engineer To Your Site If Needed. |
| Maintenance Service | Yes, We Submit a Free Maintenance Guide. |
| Repair Service | Yes, We Submit Repair Services. |
The following introduces you to different pallet racking components:Upright: Upright plays an important role in connecting each beam of pallet racking and broadening the entire storage space. Frame: the main role of the frame is to connect the beam and guarantee the whole pallet racking more stability. Beam: beams ca n be u sed to get strong support for your pallet racking.Base Plate: fix the bottom of pallet racking. Upright Protector: fix the upright columns to avoid the frame being unstable, and protect the racks.Shim: make the bottom of the pallet racking more flatterConnecting Bolt: It is responsible for connecting the beams and frames
OKE Storage supports customization, such as drawingcolorpackage and size etc.
Customized Services
1.Strictly Racking Quality Inspection Why Choose Us OKE Storage Systems has a professional quality inspection team consisting of 15 people, we check the pallet racking quality for every producing step, it can guarantee the quality of your racking during processing.
2.Advanced Production Equipment A variety of complete equipment to make sure the delivery time and quality are within our control range.
3.The Best Racking Quality of Powder Coating OKE Storage via two times powerful pickling technology to make oxidize very well and produce a layer of oxidation film on the steel surface, which can make the resin powder adsorb better on the steel, No Other Supplier Match! Greatly increased your racking life.
Company Introduction:
Company Profile OKE Storage is dedicated to the production of racking storage, providing quality solutions for saving your storage space and storage ways. We have over 23 years of experience exporting our quality racking to over 85 countries worldwide to date. Our fully automated, state-of-the-art technology provides the preconditions for the production of the optimum racking. We also offer a 10-year warranty to cover all your racking problems in the future. Most importantly,we always put the customer first and provide the best possible service.
Q1:Is Selective Pallet Racking Same as the Teardrop Pallet Racks? A1:Selective racking is the standard version. On the other hand, teardrop racks are just one type of these racks.
Q2:Layout of Selective Pallet Racking? A2:The layout of a selective rack is strict to one pallet deep. This limits you to only place two back-to-back racks.Q3:Can the Selective Pallet Racking be easily adjusted or expanded in the future? A3:The beams are inserted into the uprights, making disassembly very convenient. The spacing of each hole in the uprights is 50mm/75mm, and the minimum adjustment distance for rack height is 50mm/75mm. You can extend the depth of the rack by adding additional frames,typically up to 30 additional frames. However, intheory,it can be expanded indefinitely.Q4:What Safety Accessories Are Included with the Selective Pallet Racking? A4:Bottom angles, diagonal braces, horizontal braces, foot guards, guardrails, rear load beams,safety bolts, back mesh, pallet stops, cargo dividers, mesh panels, pallet supports, anti-roll drums,signage and warnings,intermediate struts, and shims are all included.Q5:How Does the Selective Pallet Racking Ensure Proper Load Distribution and Stability? A5:Our professional design team calculates and analyzes the rigidity, strength, and torque of the steel,taking into account permanent, variable, and accidental loads, as well as the effects of perforations, local buckling, global buckling, distortion buckling, and defects. In simple terms, the design of beams and uprights helps distribute loads evenly. Diagonal and horizontal braces provide stability to the structure.Q6:What Products Are Suitable for Selective Pallet Racking? A6:Pallet racking is suitable for storing a variety of large quantities of items, as well as single-item bulk storage.For example, it can be used for storing food, clothing,pharmaceuticals, parcels, packaging materials, automotive parts, and more.
